Eigenschaften

Technische Daten

Condition: New

Warranty: 1.5 years

Applicable Industries: Energy & Mining

Weight (KG): 1000

Showroom Location: None

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Ordinary Product

Type: Heating Elements

Keywords: 410t/h power plant CFB boiler

Application: power station CFB boiler

Zertifizierung: ASME

Color: Customer's Requirement

Material: Carbon Steel

After Warranty Service: No service

Product name: Heat Exchanger Boiler Drum For 410t/H Power Plant CFB Boiler

Grundinformation

Zertifizierung: ASME

Zahlung und Versand AGB

Packaging Details: Customer Designed Heat Exchanger Boiler Drum For 410t/H Power Plant CFB Boiler Normal wooden pack

Supply Ability: 500 Metric Ton/Metric Tons per Month Customer Designed Heat Exchanger Boiler Drum For 410t/H Power Pl

Produkt-Beschreibung

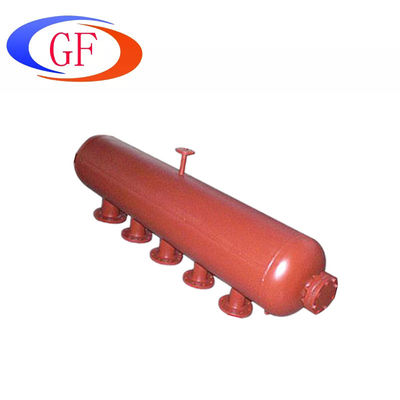

Product Name	Boiler Steam Drum ( Steam Water Separator )
Applied Area	Natural circulation boiler
Drum Shell Plate Material	- Carbon Steel : Q245R, P265GH, SA516-Gr.60/65/70 - Alloy Steel : Q345R, Q375R, 15CrMoR, 12Cr1MoVR, P355GH , DIWA353
Drum Head Material	Same as shell
Nozzle Tube Material	As per design
Standard	China GB, ASME, EN
Manufacturer Grade	China A Grade, ABS Certificated, TUV Certificated
Working Temperature	Saturation Temperature at rated pressure
Working Pressure	1.6 MPa ~ 22.5 MPa
Shell Plate Thickness (Drum Wall Thickness)	≤150 mm
Drum Diameter	≤3,200 mm
Drum Length	≤25,000 mm
Welding	- Shell : SMAW, SAW - Nozzle tube : GTAW (TIG), SMAW
Welding NDT	- Shell longitudinal seam : 100% RT, 100% UT - Shell circumferential seam : 100% RT, 15% UT - Nozzle tube angle seam : 100% UT, 100% MT

Q1:How long is the warranty period? We provide 12 months warranty for all spare parts(exclude fragile parts). Q2:How do you control the quality? 1) All GF machines are in strict accordance with the ISO quality and CE system requirements. 2) Each procedure is crafted by professional Skilled labour, followed by particular QC 3) All information of our products can be checked in efficient management system. Q3:What certifications do you have? All our products are CE and ISO9001 certified. Numerous design and innovation patent for all our current models and spare parts. Such as the innovation patent squeegee design. Q4:What kind of service do you provide? Before sales: Provide productinformations, market research forecasting, product customization,product processing,consultation and other services for your convenience.

After sales: 1. Technical training on according to customer requirements; 2. We promise replacement under warranty; 3. We promise to supply the maintenance spare parts; 4. Regular call back or visit customers; 5. On time response to mail and phone calls of your complaints or consultation. Q5:Are you a factory or trading company, where are you located？ We are a factory, just 130km(2 hours by car) away from Shanghai Airport.We offer pickup service at Shanghai for your visit.
